Analog Devices Inc. ADG1411YRUZ-REEL7
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Integrated Circuits (ICs) Interface - Analog Switches, Multiplexers, Demultiplexers |
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
- |
|
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Part Status |
Active |
|
|
Switch Circuit |
SPST - NC |
|
|
Multiplexer/Demultiplexer Circuit |
1:1 |
|
|
Number of Circuits |
4 |
|
|
On-State Resistance (Max) |
1.8Ohm |
|
|
Channel-to-Channel Matching (ΔRon) |
100mOhm |
|
|
Voltage - Supply, Single (V+) |
5V ~ 16.5V |
|
|
Voltage - Supply, Dual (V±) |
±4.5V ~ 16.5V |
|
|
Switch Time (Ton, Toff) (Max) |
150ns, 120ns |
|
|
-3db Bandwidth |
170MHz |
|
|
Charge Injection |
-20pC |
|
|
Channel Capacitance (CS(off), CD(off)) |
23pF, 23pF |
|
|
Current - Leakage (IS(off)) (Max) |
550pA |
|
|
Crosstalk |
-100dB @ 1MHz |
|
|
Operating Temperature |
-40°C ~ 125°C (TA) |
|
|
Mounting Type |
Surface Mount |
|
|

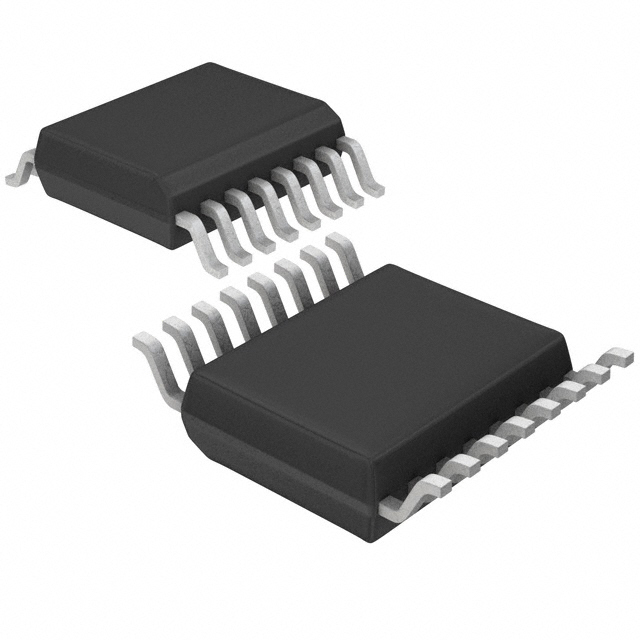

Package / Case |
16-TSSOP (0.173", 4.40mm Width) |
|
|
Supplier Device Package |
16-TSSOP |
|
|
Base Product Number |
ADG1411 |
