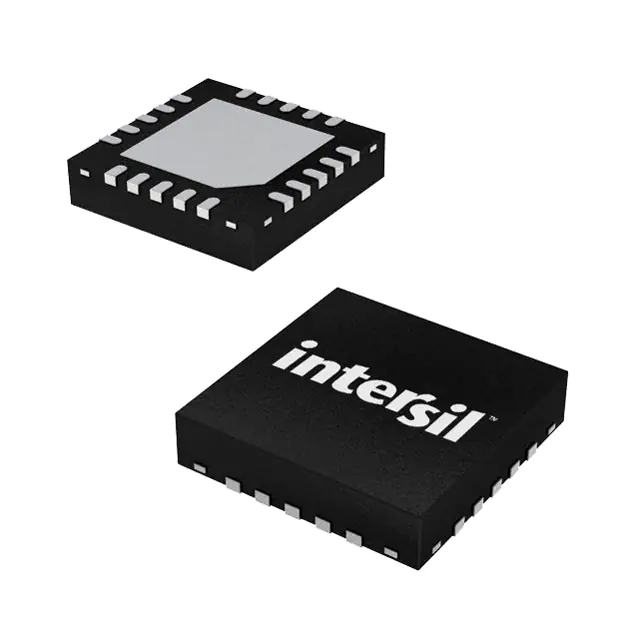

Renesas Electronics America Inc ISL43840IRZ
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Integrated Circuits (ICs) Interface - Analog Switches, Multiplexers, Demultiplexers |
|
|
Mfr |
Renesas Electronics America Inc |
|
|
Series |
- |
|
|
Package |
Tube |
|
|
Part Status |
Discontinued at Digi-Key |
|
|
Switch Circuit |
SP4T |
|
|
Multiplexer/Demultiplexer Circuit |
4:1 |
|
|
Number of Circuits |
2 |
|
|
On-State Resistance (Max) |
50Ohm |
|
|
Channel-to-Channel Matching (ΔRon) |
1.3Ohm |
|
|
Voltage - Supply, Single (V+) |
2.7V ~ 12V |
|
|
Voltage - Supply, Dual (V±) |
±2V ~ 6V |
|
|
Switch Time (Ton, Toff) (Max) |
50ns, 35ns |
|
|
-3db Bandwidth |
- |
|
|
Charge Injection |
0.3pC |
|
|
Channel Capacitance (CS(off), CD(off)) |
3pF, 12pF |
|
|
Current - Leakage (IS(off)) (Max) |
100pA |
|
|
Crosstalk |
-105dB @ 100kHz |
|
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
20-VFQFN Exposed Pad |
|
|
Supplier Device Package |
20-QFN (4x4) |
|
|
Base Product Number |
ISL43840 |
