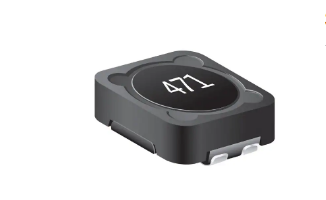

SRF0703-4R7M

Product Attributes

TYPE

DESCRIPTION

SELECT

Category

Inductors, Coils, Chokes

Arrays, Signal Transformers



Bourns Inc.



SRF0703



Tape & Reel (TR)

Cut Tape (CT)

Digi-Reel®

Part Status

Active

Number of Coils

2

Inductance - Connected In Parallel

4.7 µH

Inductance - Connected In Series

18.8 µH

Tolerance

±20%

Current Rating - Parallel

3.09 A

Current Rating - Series

1.55 A

Current Saturation - Parallel

3.78 A

Current Saturation - Series

1.89 A

DC Resistance (DCR) - Parallel

40.6mOhm Max

DC Resistance (DCR) - Series

242mOhm Max

Shielding

Shielded

Ratings

-

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.299" L x 0.299" W (7.60mm x 7.60mm)

Height

0.142" (3.60mm)



SRF0703
