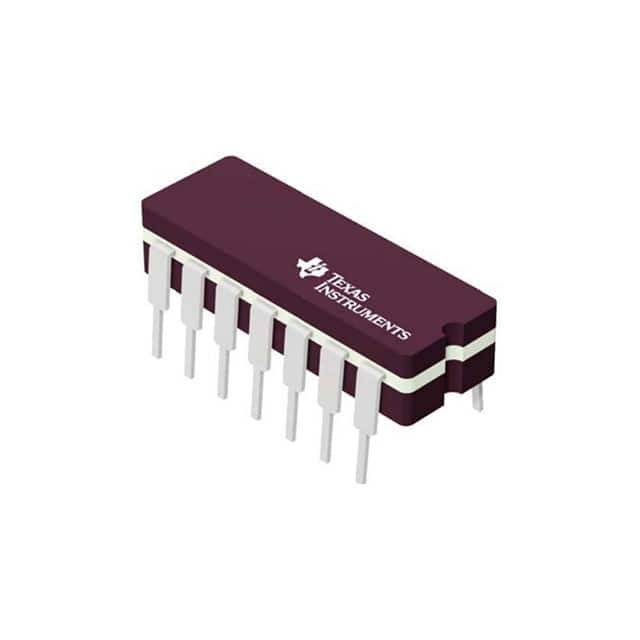

Texas Instruments SN74HC04AN
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Integrated Circuits (ICs) Logic - Gates and Inverters |
|
|
Mfr |
Texas Instruments |
|
|
Series |
74HC |
|
|
Package |
Tube |
|
|
Part Status |
Discontinued at Digi-Key |
|
|
Logic Type |
Inverter |
|
|
Number of Circuits |
6 |
|
|
Number of Inputs |
6 |
|
|
Features |
- |
|
|
Voltage - Supply |
2V ~ 6V |
|
|
Current - Quiescent (Max) |
2 µA |
|
|
Current - Output High, Low |
5.2mA, 5.2mA |
|
|
Logic Level - Low |
0.1V ~ 0.26V |
|
|
Logic Level - High |
1.9V ~ 5.9V |
|
|
Max Propagation Delay @ V, Max CL |
13ns @ 6V, 50pF |
|
|
Operating Temperature |
-40°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Supplier Device Package |
14-PDIP |
|
|
Package / Case |
14-DIP (0.300", 7.62mm) |
|
|
Base Product Number |
74HC04 |
