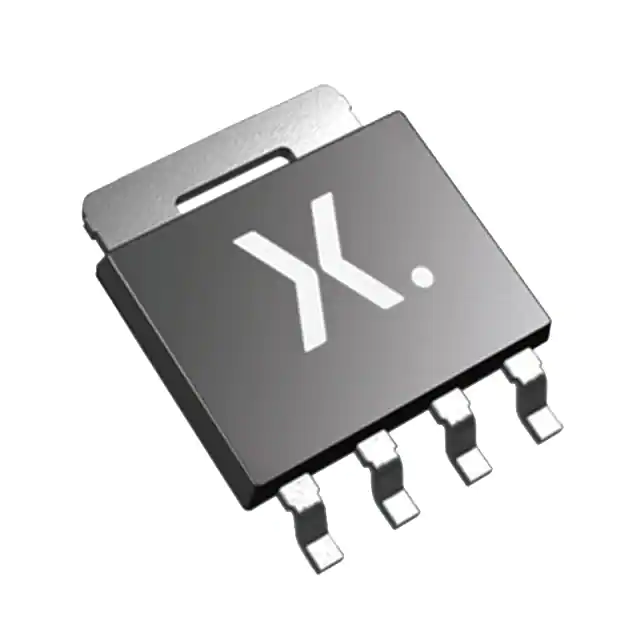

Nexperia USA Inc. BUK9Y25-60E,115
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Discrete Semiconductor Products Transistors - FETs, MOSFETs - Single |
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
Automotive, AEC-Q101, TrenchMOS™ |
|
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Part Status |
Active |
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
60 V |
|
|
Current - Continuous Drain (Id) @ 25°C |
34A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
5V |
|
|
Rds On (Max) @ Id, Vgs |
21.5mOhm @ 10A, 10V |
|
|
Vgs(th) (Max) @ Id |
2.1V @ 1mA |
|
|
Gate Charge (Qg) (Max) @ Vgs |
12 nC @ 5 V |
|
|
Vgs (Max) |
±10V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1500 pF @ 25 V |
|
|
FET Feature |
- |
|
|
Power Dissipation (Max) |
65W (Tc) |
|
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
|
|
Mounting Type |
Surface Mount |
|
|
Supplier Device Package |
LFPAK56, Power-SO8 |
|
|
Package / Case |
SC-100, SOT-669 |
|
|
Base Product Number |
BUK9Y25 |
