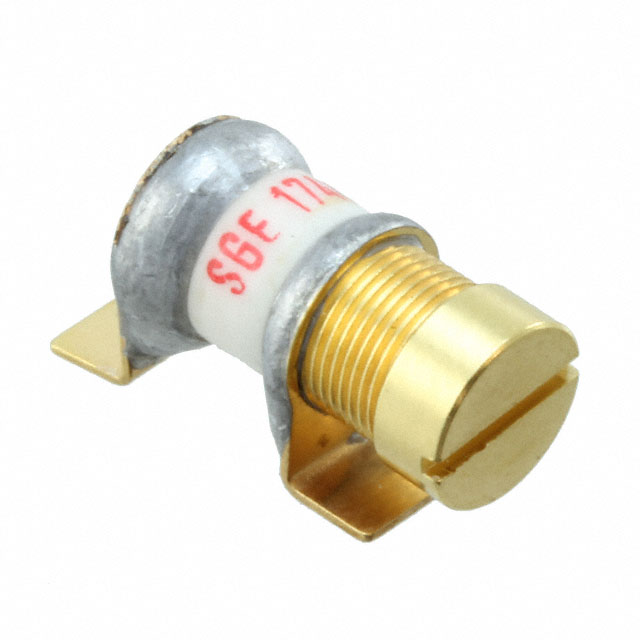

SG9069-ND CAP TRIMMER 2-20PF 1000V SMD

Capacitance range: 2 ~ 20pF
Adjustment type: side
Voltage - rated: 1000V
Dielectric material: Polytetrafluoroethylene (PTFE)
Q at different frequencies: 2000 @ 100MHz
Size / Size: 0.280" Diameter (7.11mm)
Height - Installation (maximum): 0.522" (13.26mm)
Working temperature: -65 ° C ~ 125 ° C
Mounting Type: Surface Mount Type
Features: Non-magnetic
