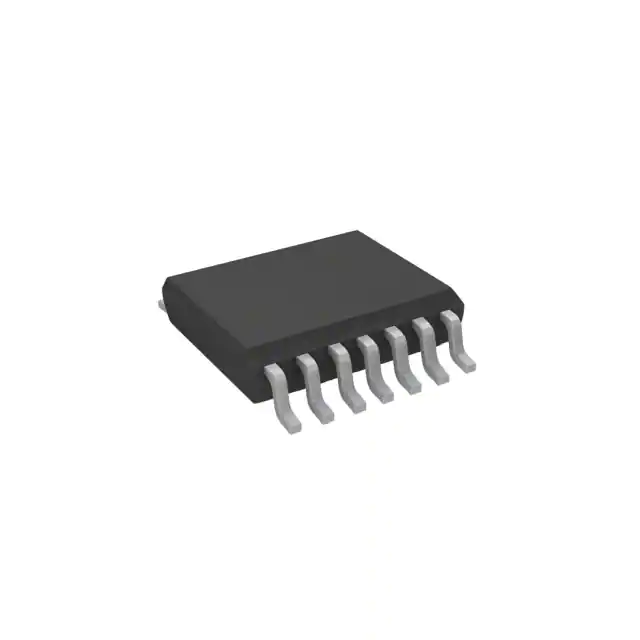

Infineon Technologies BTS70101EPAXUMA1
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Integrated Circuits (ICs) PMIC - Power Distribution Switches, Load Drivers |
|
|
Mfr |
Infineon Technologies |
|
|
Series |
Automotive, AEC-Q100, PROFET® |
|
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Product Status |
Active |
|
|
Switch Type |
General Purpose |
|
|
Number of Outputs |
1 |
|
|
Ratio - Input:Output |
1:1 |
|
|
Output Configuration |
High Side |
|
|
Output Type |
N-Channel |
|
|
Interface |
On/Off |
|
|
Voltage - Load |
6V ~ 18V |
|
|
Voltage - Supply (Vcc/Vdd) |
Not Required |
|
|
Current - Output (Max) |
9A |
|
|
Rds On (Typ) |
9.5mOhm |
|
|
Input Type |
Non-Inverting |
|
|
Features |
Slew Rate Controlled |
|
|
Fault Protection |
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
|
|
Operating Temperature |
-40°C ~ 150°C (TJ) |
|
|
Mounting Type |
Surface Mount |
|
|
Supplier Device Package |
PG-TSDSO-14-22 |
|
|
Package / Case |
14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
|
|
Base Product Number |
BTS70101 |
