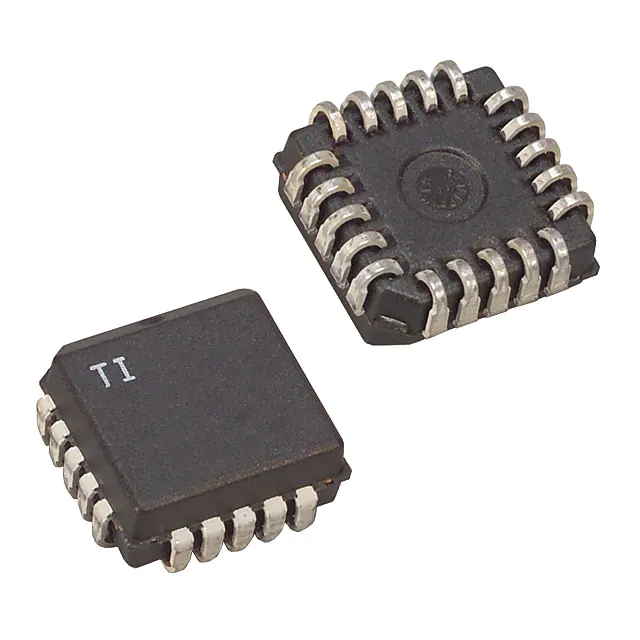

Texas Instruments TLC1542QFN
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Integrated Circuits (ICs) Data Acquisition - Analog to Digital Converters (ADC) |
|
|
Mfr |
Texas Instruments |
|
|
Series |
- |
|
|
Package |
Tube |
|
|
Product Status |
Discontinued at Digi-Key |
|
|
Number of Bits |
10 |
|
|
Sampling Rate (Per Second) |
38k |
|
|
Number of Inputs |
11 |
|
|
Input Type |
Single Ended |
|
|
Data Interface |
SPI |
|
|
Configuration |
MUX-S/H-ADC |
|
|
Ratio - S/H:ADC |
1:1 |
|
|
Number of A/D Converters |
1 |
|
|
Architecture |
SAR |
|
|
Reference Type |
External |
|
|
Voltage - Supply, Analog |
5V |
|
|
Voltage - Supply, Digital |
5V |
|
|
Features |
Selectable Address |
|
|
Operating Temperature |
-40°C ~ 85°C |
|
|
Package / Case |
20-LCC (J-Lead) |
|
|
Supplier Device Package |
20-PLCC (9x9) |
|
|
Mounting Type |
Surface Mount |
|
|
Base Product Number |
TLC154 |
