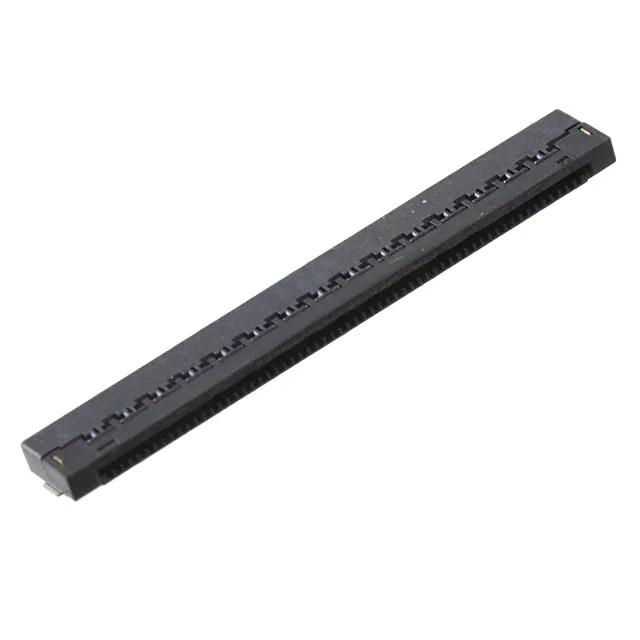

Molex 5033666011
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies |
|
|
Mfr |
Molex |
|
|
Series |
Easy-On 503366 |
|
|
Package |
Cut Tape (CT) Digi-Reel® |
|
|
Product Status |
Discontinued at Digi-Key |
|
|
Flat Flex Type |
FFC, FPC |
|
|
Mounting Type |
Surface Mount, Right Angle |
|
|
Connector/Contact Type |
Contacts, Bottom |
|
|
Number of Positions |
60 |
|
|
Pitch |
0.020" (0.50mm) |
|
|
Termination |
Solder |
|
|
FFC, FCB Thickness |
0.30mm |
|
|
Height Above Board |
0.079" (2.00mm) |
|
|
Locking Feature |
Flip Lock |
|
|
Cable End Type |
Tabbed, Tapered |
|
|
Contact Material |
Phosphor Bronze |
|
|
Contact Finish |
Gold |
|
|
Housing Material |
Liquid Crystal Polymer (LCP), Glass Filled |
|
|
Actuator Material |
Polyphenylene Sulfide (PPS), Glass Filled |
|
|
Features |
Solder Retention |
|
|
Voltage Rating |
50V |
|
|
Operating Temperature |
-20°C ~ 85°C |
|
|
Material Flammability Rating |
UL94 V-0 |
|
|
Current Rating (Amps) |
0.5A |
|
|
Contact Finish Thickness |
- |
|
|
Housing Color |
Black |
|
|
Actuator Color |
Black |
|
|
Mating Cycles |
20 |
|
|
Base Product Number |
503366 |
