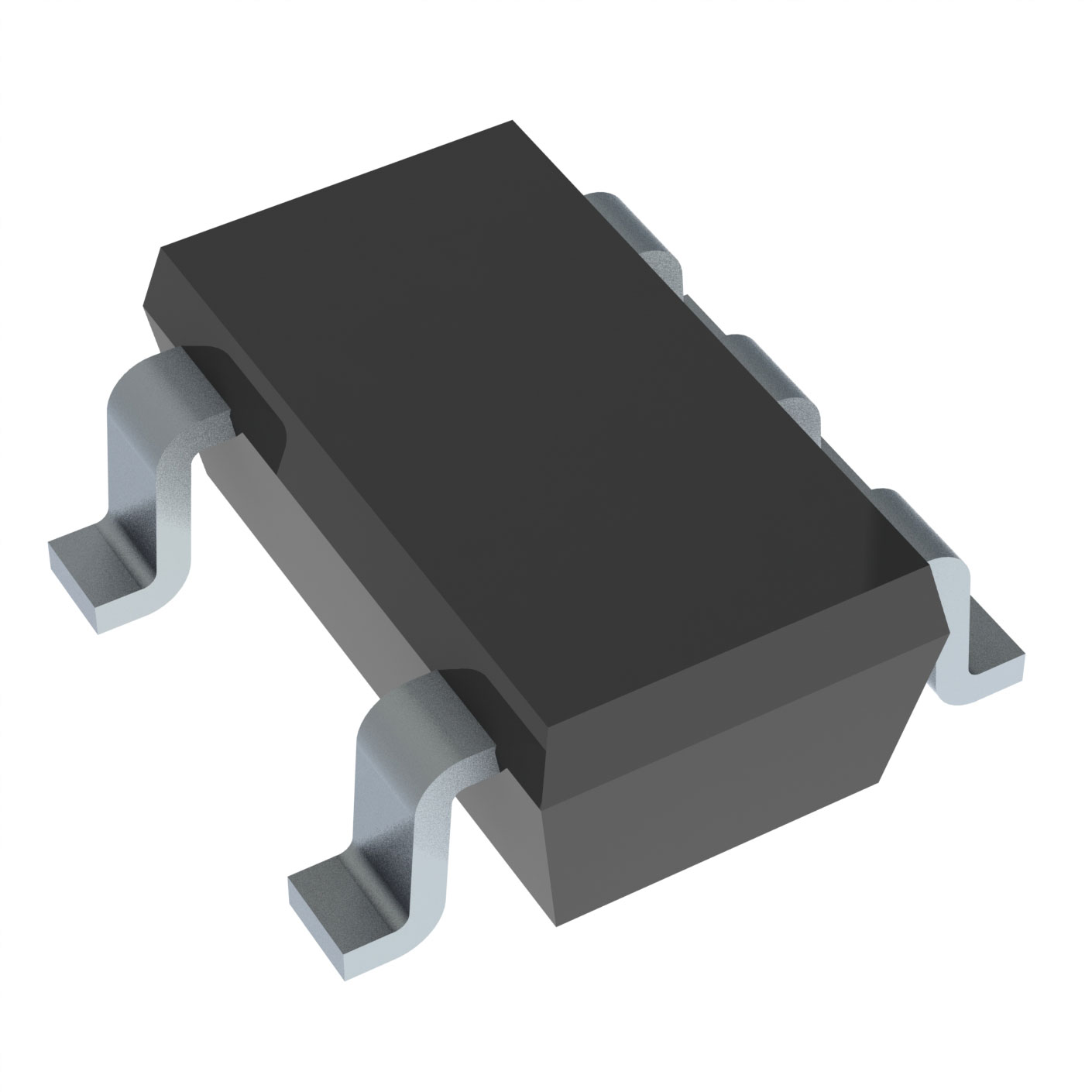

Texas Instruments SN74AHC1G14DBVRE4
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Integrated Circuits (ICs) Logic Gates and Inverters |
|
|
Mfr |
Texas Instruments |
|
|
Series |
74AHC |
|
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Product Status |
Discontinued at Digi-Key |
|
|
Logic Type |
Inverter |
|
|
Number of Circuits |
1 |
|
|
Number of Inputs |
1 |
|
|
Features |
Schmitt Trigger |
|
|
Voltage - Supply |
2V ~ 5.5V |
|
|
Current - Quiescent (Max) |
1 µA |
|
|
Current - Output High, Low |
8mA, 8mA |
|
|
Input Logic Level - Low |
0.9V ~ 1.65V |
|
|
Input Logic Level - High |
2.2V ~ 3.85V |
|
|
Max Propagation Delay @ V, Max CL |
10.6ns @ 5V, 50pF |
|
|
Operating Temperature |
-40°C ~ 125°C |
|
|
Mounting Type |
Surface Mount |
|
|
Supplier Device Package |
SOT-23-5 |
|
|
Package / Case |
SC-74A, SOT-753 |
|
|
Base Product Number |
74AHC1G14 |
