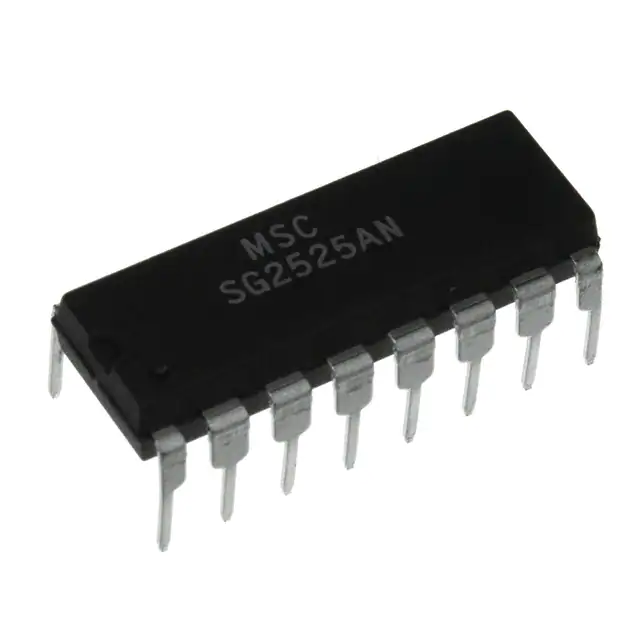

Microchip Technology SG2525AN
Product Attributes
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
||
|
Mfr |
Microchip Technology |
|
|
Series |
- |
|
|
Package |
Tube |
|
|
Part Status |
Discontinued at Digi-Key |
|
|
Output Type |
Transistor Driver |
|
|
Function |
Step-Up/Step-Down |
|
|
Output Configuration |
Positive |
|
|
Topology |
Push-Pull |
|
|
Output Phases |
1 |
|
|
Voltage - Supply (Vcc/Vdd) |
8V ~ 35V |
|
|
Frequency - Switching |
100Hz ~ 350kHz |
|
|
Duty Cycle (Max) |
49% |
|
|
Synchronous Rectifier |
Yes |
|
|
Clock Sync |
Yes |
|
|
Serial Interfaces |
- |
|
|
Control Features |
Enable, Soft Start |
|
|
Operating Temperature |
-25°C ~ 85°C (TA) |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
16-DIP (0.300"", 7.62mm) |
|
|
Supplier Device Package |
16-PDIP |
|
|
Number of Outputs |
2 |
|
|
Base Product Number |
