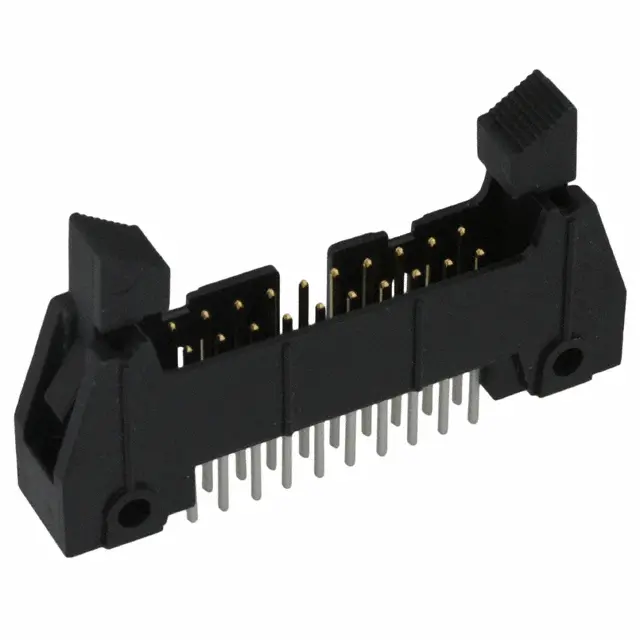

N3428-6202RB CONN HEADER VERT 20POS 2.54MM

Part Status: Active
Category : Connectors, Interconnects
Product Family: Rectangular Connector - Header, Male Pin
Series: 3000
Connector Type: Connector
Contact Type : Male Pin
Spacing - Mating: 0.100" (2.54mm)
Number of stitches: 20
Number of rows: 2
Material flammability rating: UL94 V-0
Insulation color : black
Rated current (ampere): 1.75A
Line spacing - Mating: 0.100" (2.54mm)
Number of pins loaded: All
Style : board to board or cable
Shield: with cover - 4 walls
Mounting Type: Through Hole
Termination: Welding
Type of fastening : Lock / eject hook, short
Contact length - Mating: 0.240" (6.10mm)
Contact Length - Terminal: 0.112" (2.84mm)
Overall contact length: 0.652" (16.56mm)
Insulation height: 0.680" (17.27mm)
Contact shape: square
Contact Surface Treatment - Mating: Gold
Contact surface treatment thickness - Mating: 30.0μin (0.76μm)
Contact Surface Treatment - Column: Tin
Contact material: copper alloy
Insulation material: dimethylcyclohexyl polybutylene terephthalate (PCT), polyester, glass fiber reinforced
Features: Keyway, mounting flange
Working temperature: -55 ° C ~ 105 ° C
