NXP USA Inc.NX3L2T66GM,125
|
TYPE |
DESCRIPTION |
SELECT |
|---|---|---|
|
Category |
Integrated Circuits (ICs) Interface - Analog Switches, Multiplexers, Demultiplexers |
|
|
Mfr |
NXP USA Inc. |
|
|
Series |
- |
|
|
Package |
Tape & Reel (TR) Cut Tape (CT) |
|
|
Part Status |
Discontinued at Digi-Key |
|
|
Switch Circuit |
SPST - NO |
|
|
Multiplexer/Demultiplexer Circuit |
1:1 |
|
|
Number of Circuits |
2 |
|
|
On-State Resistance (Max) |
750mOhm |
|
|
Channel-to-Channel Matching (ΔRon) |
20mOhm |
|
|
Voltage - Supply, Single (V+) |
1.4V ~ 4.3V |
|
|
Voltage - Supply, Dual (V±) |
- |
|
|
Switch Time (Ton, Toff) (Max) |
28ns, 20ns |
|
|
-3db Bandwidth |
60MHz |
|
|
Charge Injection |
6pC |
|
|
Channel Capacitance (CS(off), CD(off)) |
35pF |
|
|
Current - Leakage (IS(off)) (Max) |
10nA |
|
|
Crosstalk |
-90dB @ 100kHz |
|
|
Operating Temperature |
-40°C ~ 125°C (TA) |
|
|
Mounting Type |
Surface Mount |
|
|

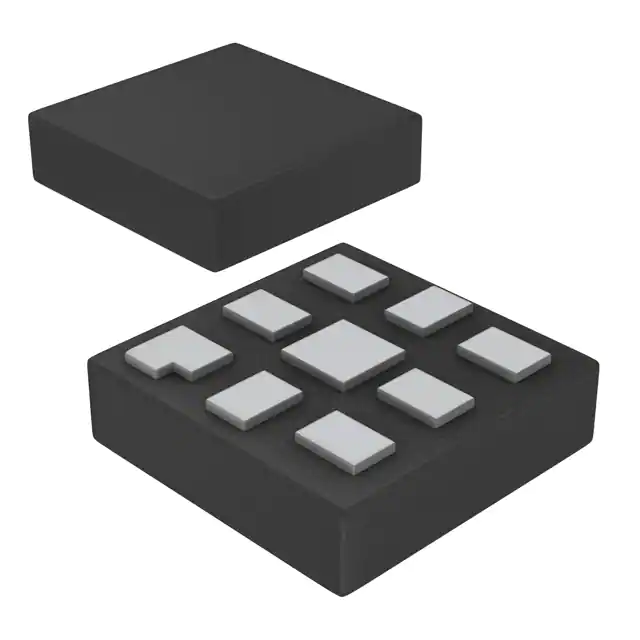

Package / Case |
8-XFQFN Exposed Pad |
|
|
Supplier Device Package |
8-XQFNU (1.6x1.6) |
|
|
Base Product Number |
NX3 |
